Punching Shear Repaired with V-Wrap™ CFRP System Structural Technologies

During construction of a 23-story luxury condominium, an area of the slab became overloaded with materials causing punching shear in six columns.

The emergency repair required various strengthening techniques including the installation of 9” drop panels and near surface mount (NSM) rods on all six columns, full-depth demolition and new steel around two of the columns, and epoxy injection prior to the installation of STRUCTURAL TECHNOLOGIES’ V-Wrap™ C200H CFRP system.

Gallery 01 / 01

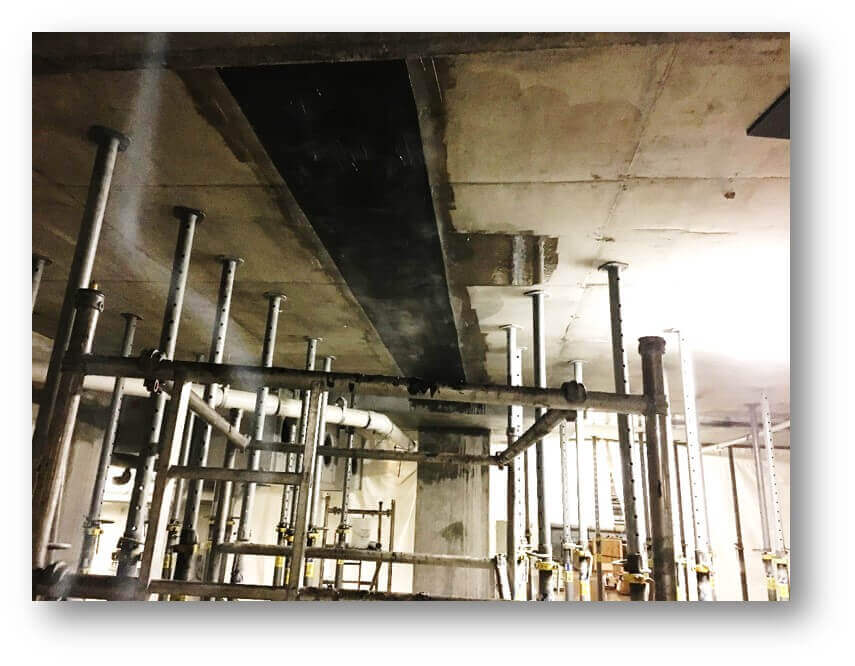

Bottom surface FRP sheet installation

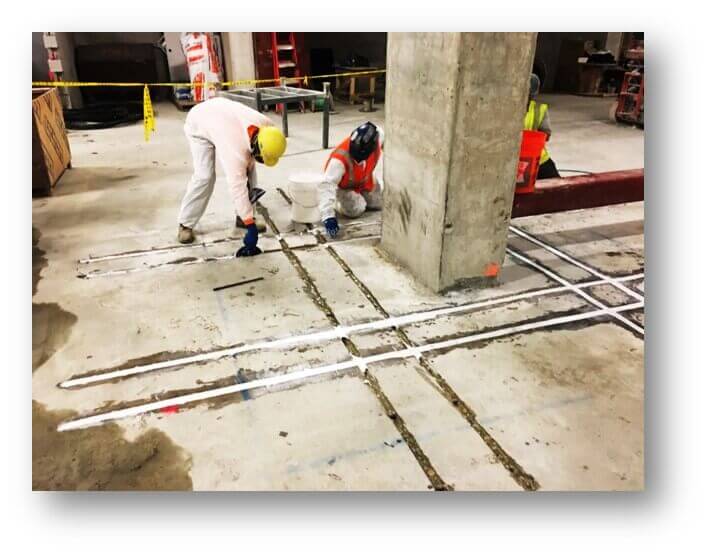

Top surface installation of CFRP bars

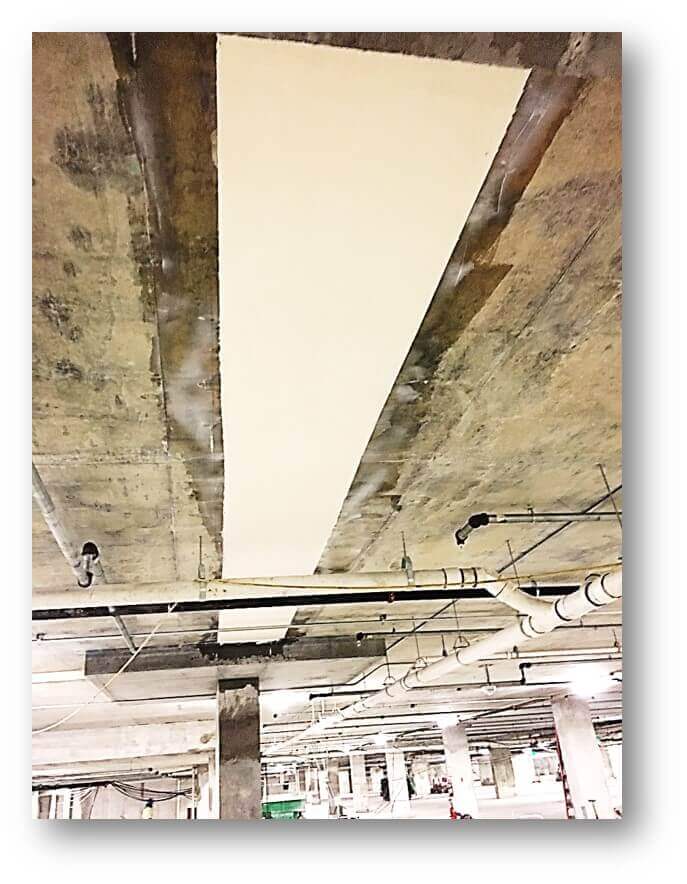

testBottom surface FRP installation – top coattest

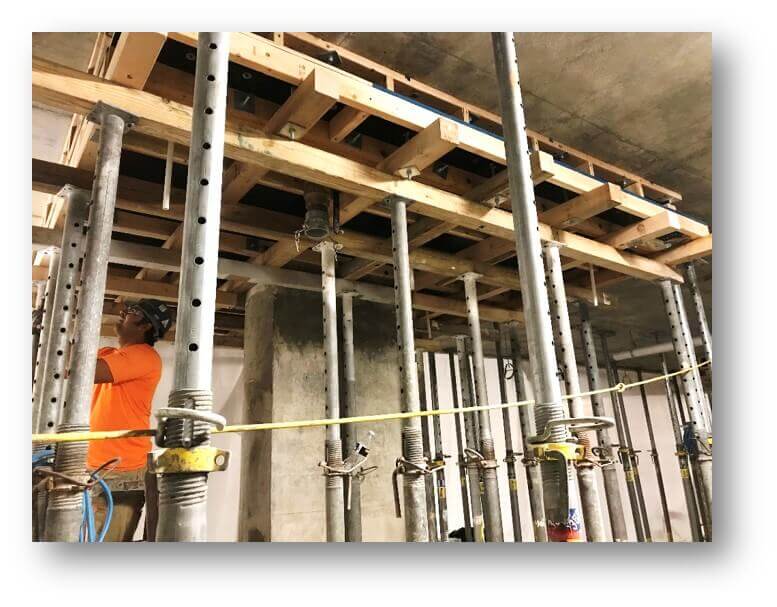

Form and pump of drop panels

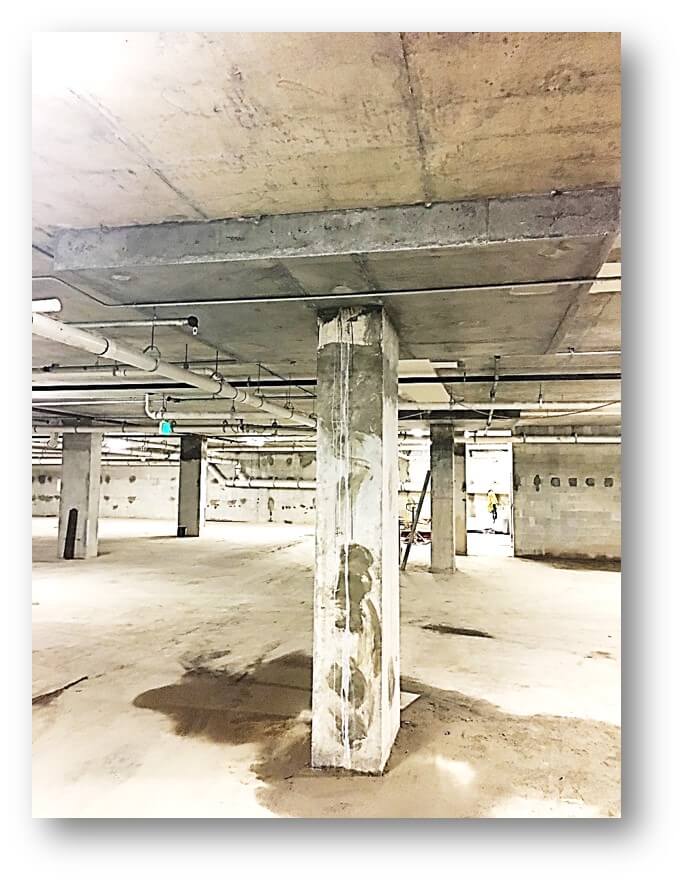

Completed drop panels

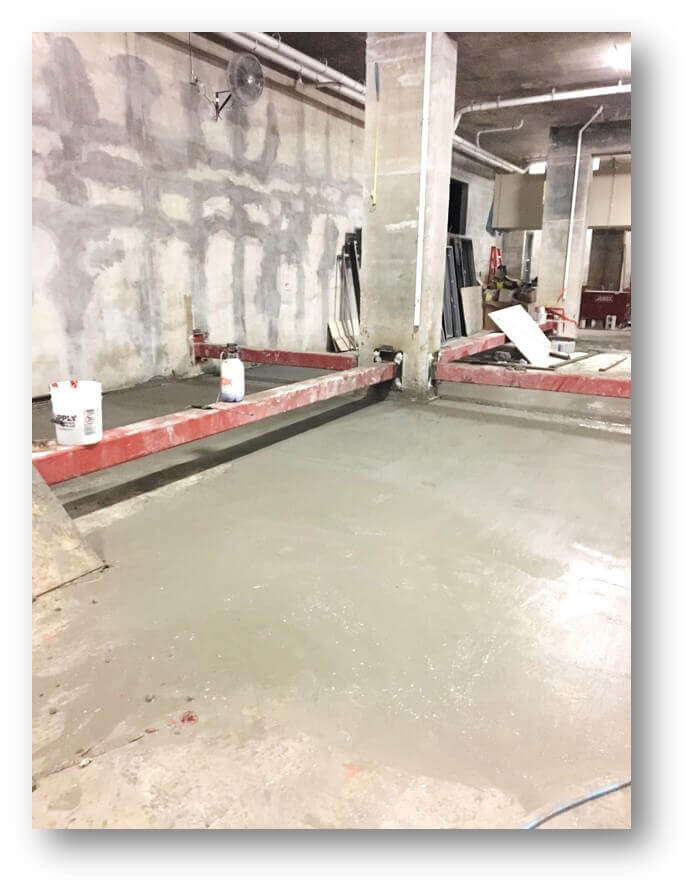

Full/Partial Depth Repair

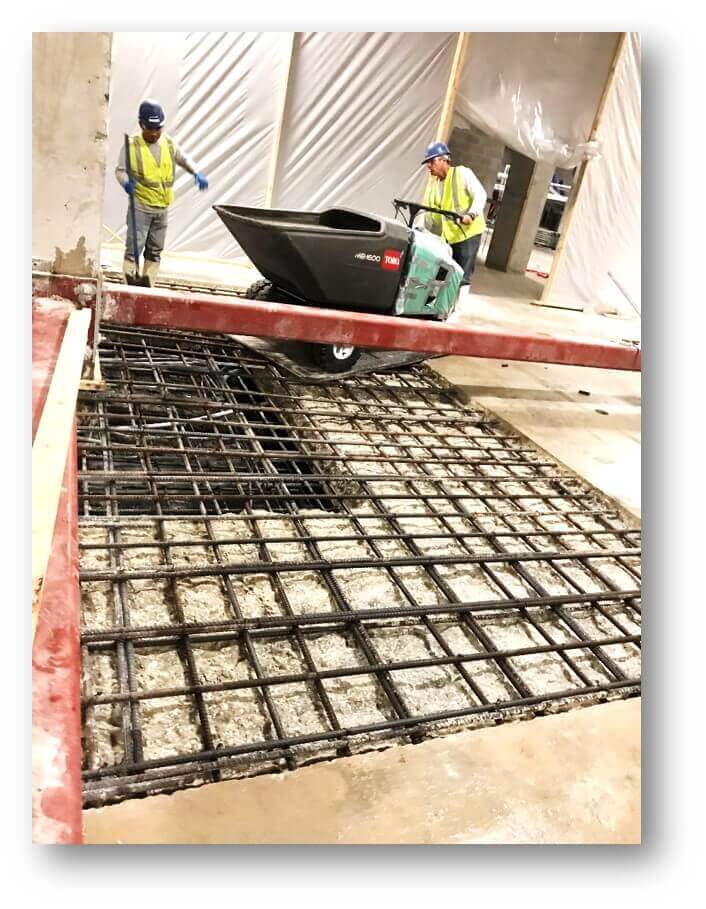

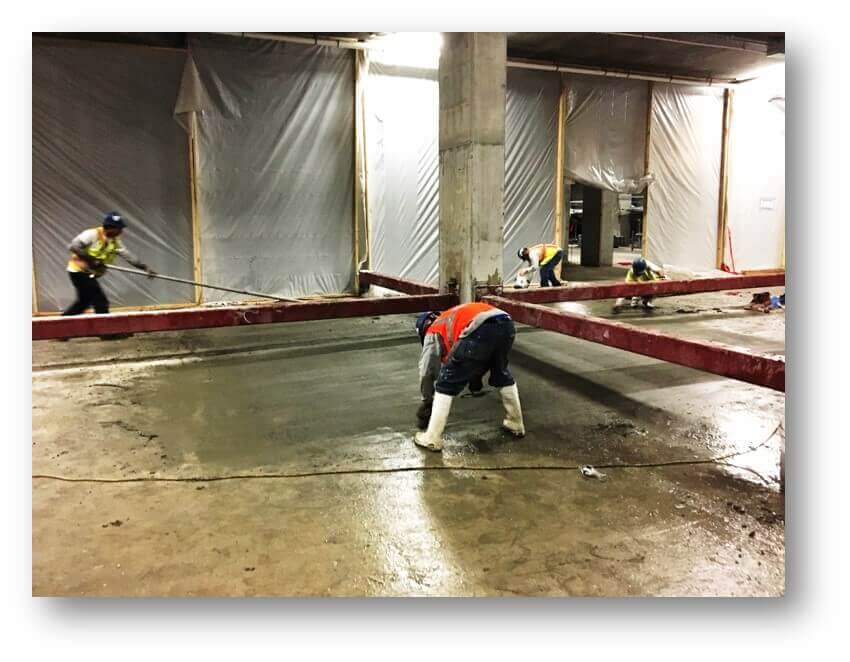

Concrete Pour

Concrete Pour

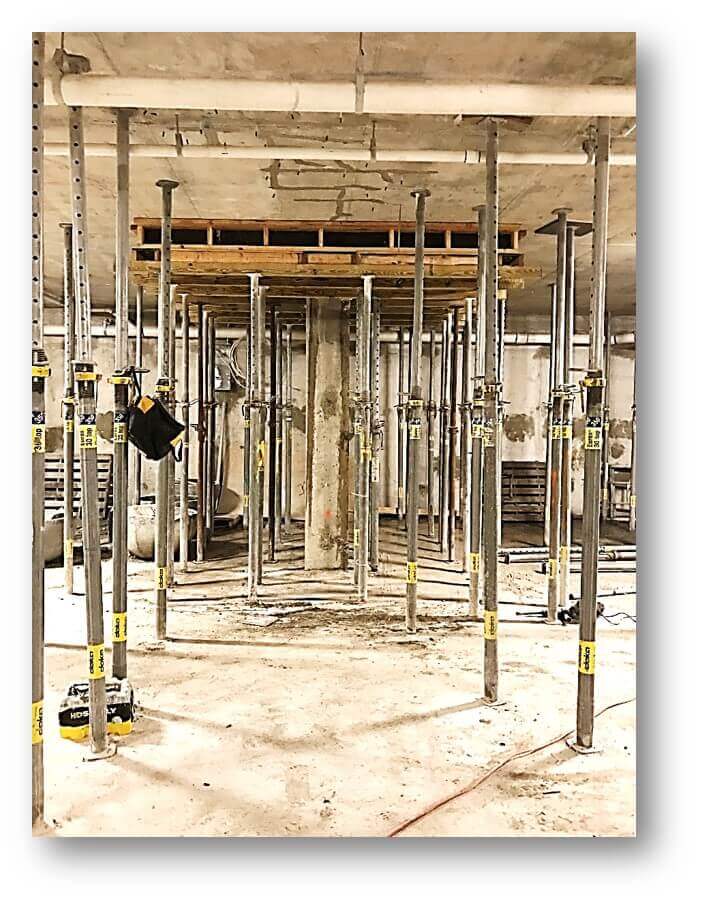

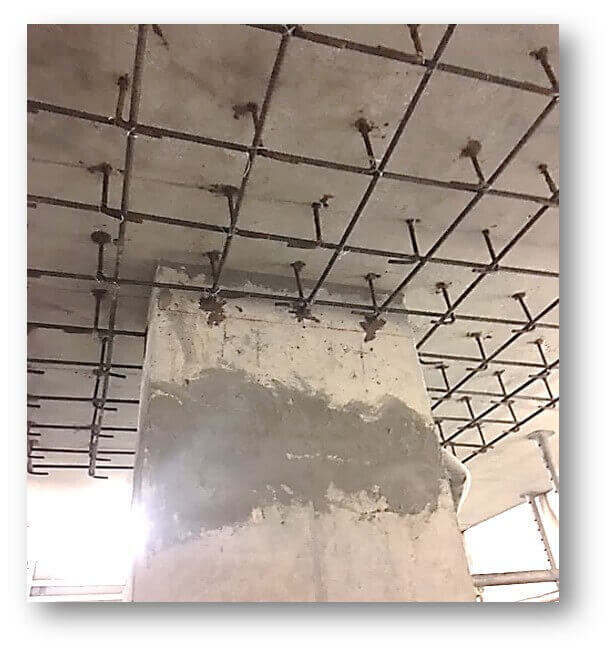

Formwork for drop panels

Formwork for drop panels

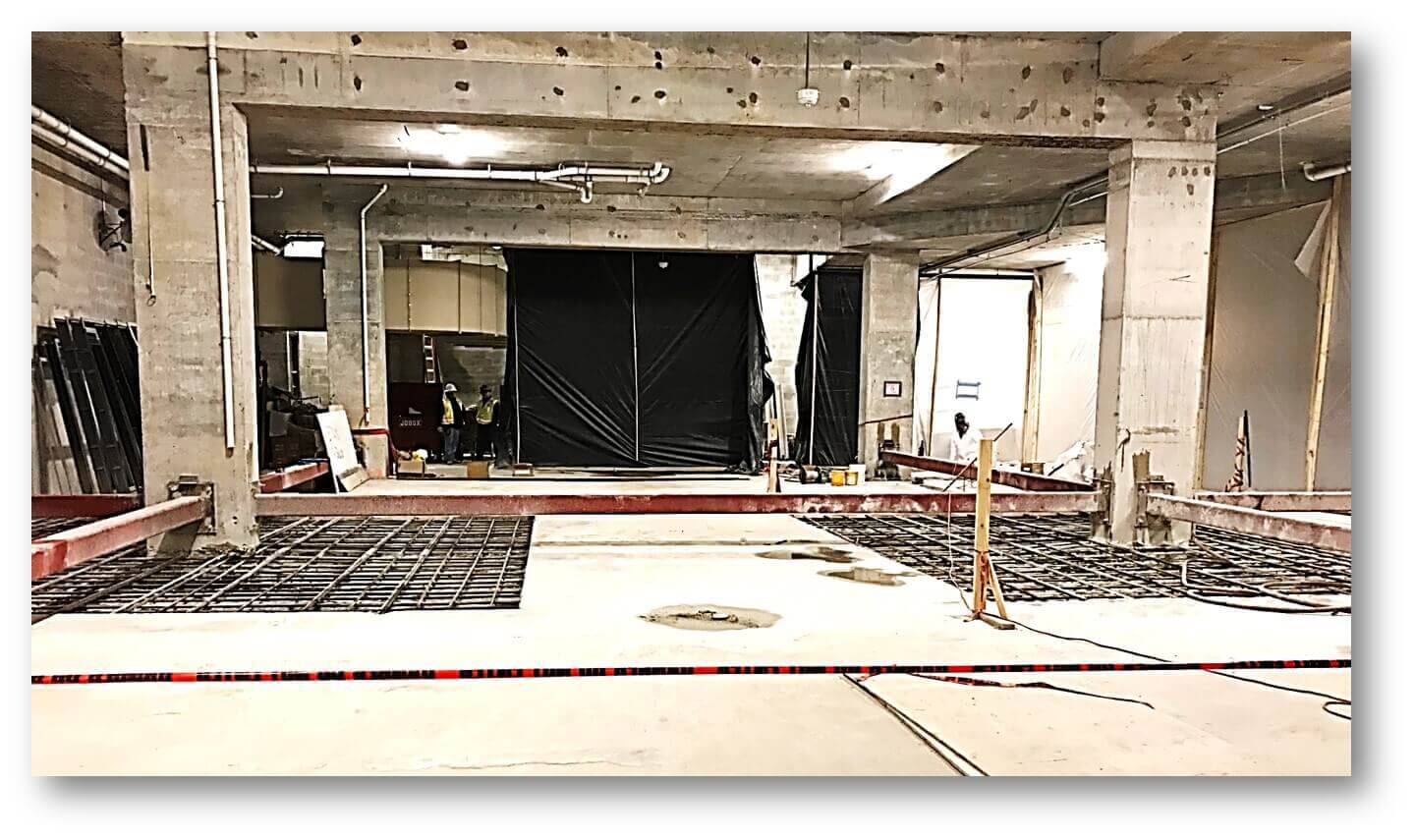

Slab demo

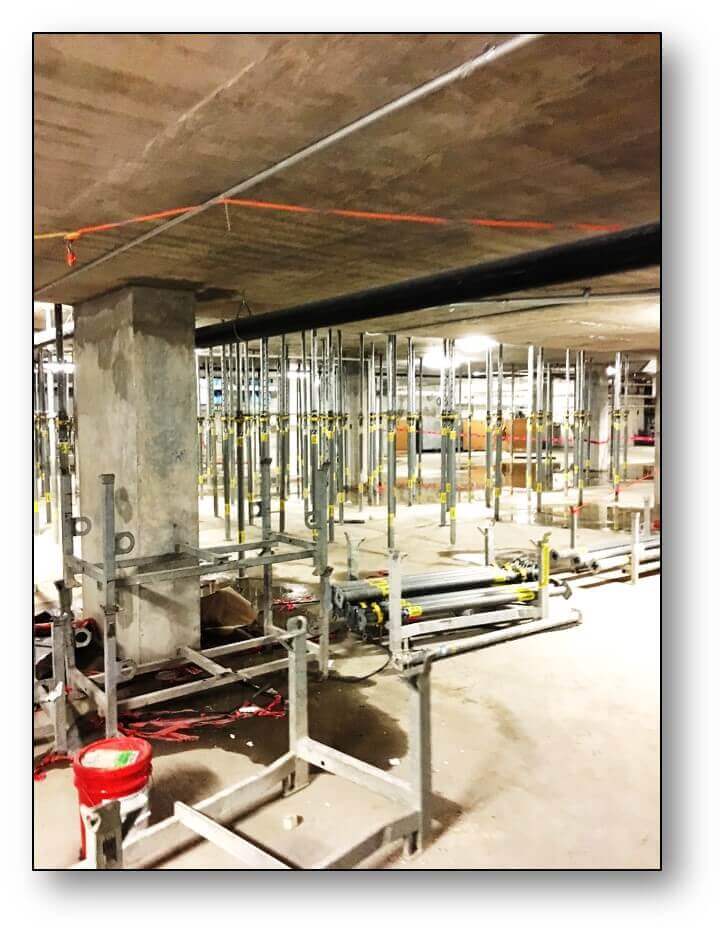

Shoring of slab

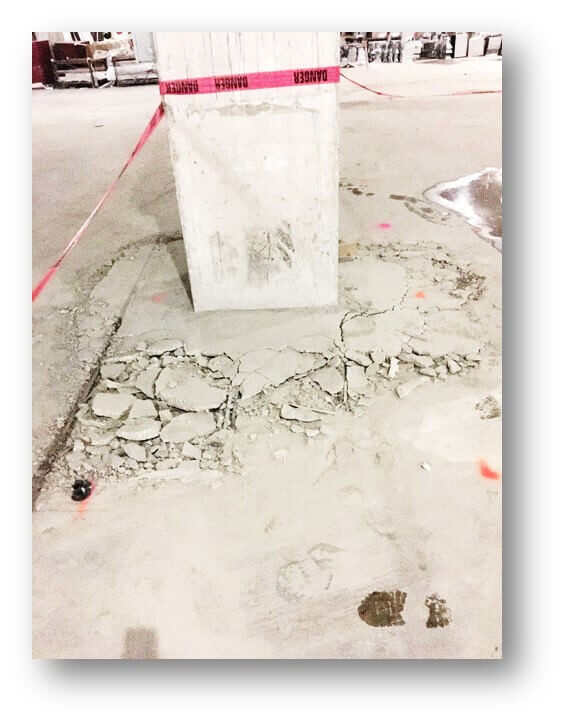

Significant punching shear failure

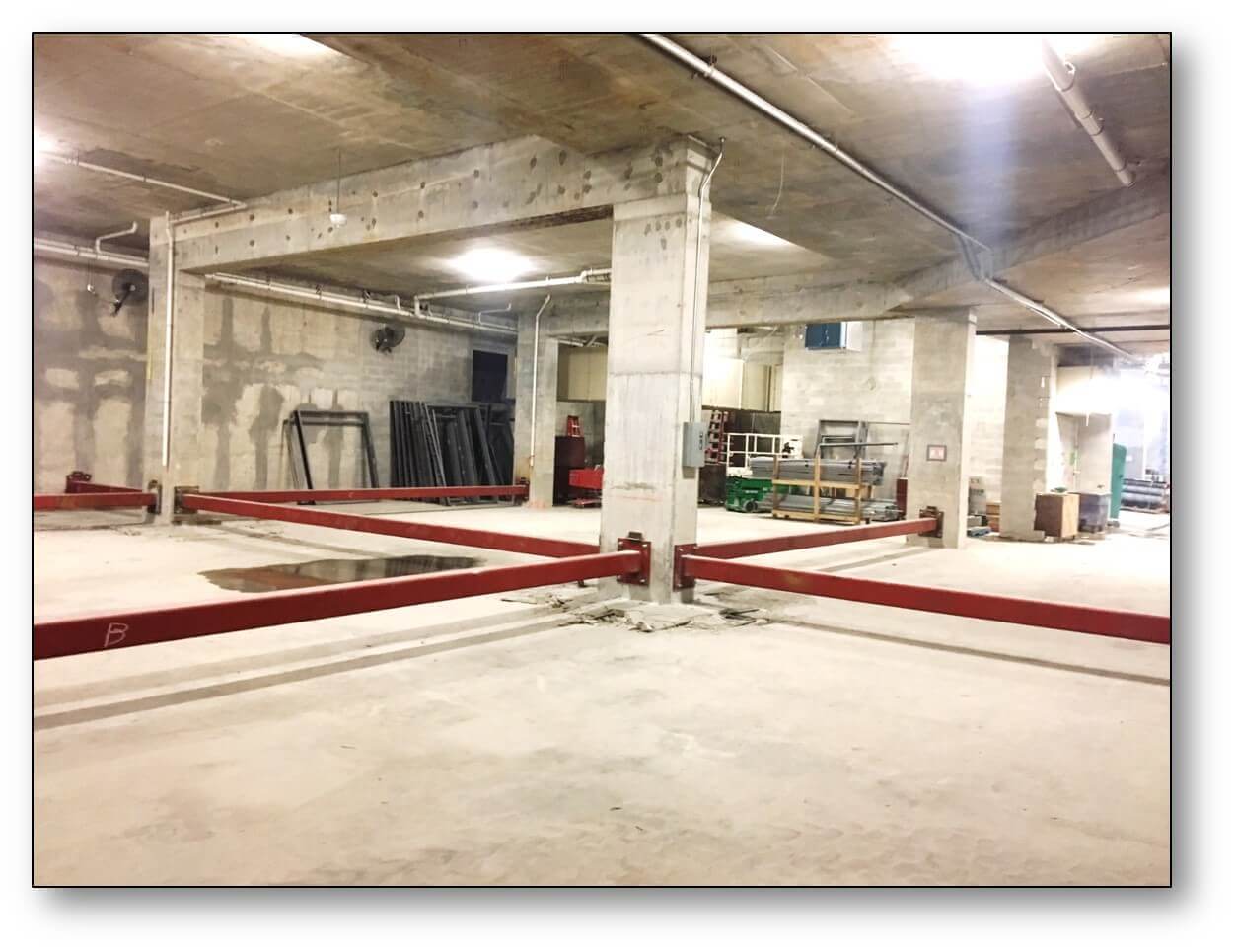

Bracing of columns

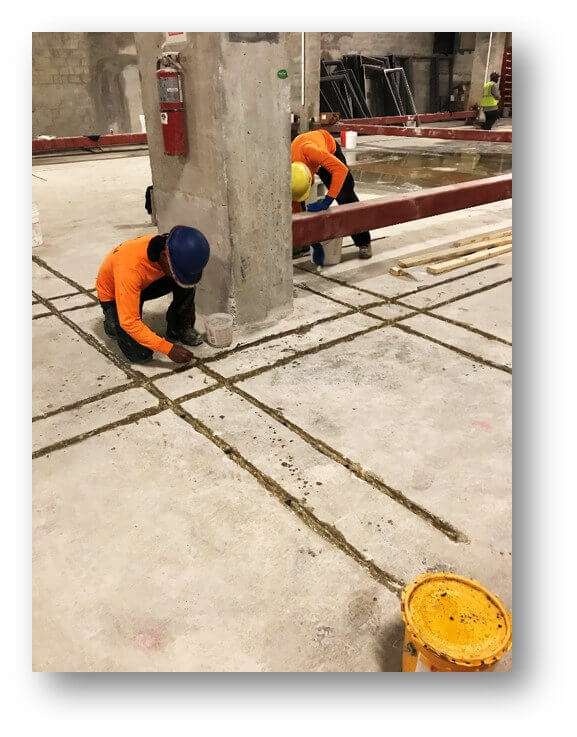

Top surface installation of CFRP bars

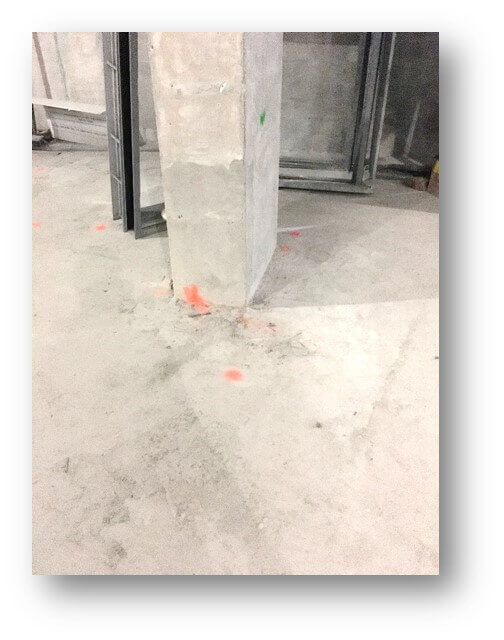

No visible distress, but this column is deficient in negative moment and shear

Project Overview

Investigate Design Build project to address punching shear caused by overloading the area with material.
V-Wrap™ C200H CFRP system installed to strengthen the six columns effected by the punching shear.
Completed project ahead of schedule and under budget.

During construction of a 23-story luxury condominium, an area of the slab became overloaded with materials causing punching shear in six columns. The emergency repair required various strengthening techniques including the installation of 9” drop panels and near surface mount (NSM) rods on all six columns, full-depth demolition and new steel around two of the columns, and epoxy injection prior to the installation of STRUCTURAL TECHNOLOGIES’ V-Wrap™ C200H CFRP system.

STRUCTURAL TECHNOLOGIES worked closely with the general contractor and engineer of record to provide design assistance and to install our strengthening solutions. This collaboration kept the project under budget and allowed for it to be completed ahead of schedule.
