Steel Pipe Waterline Strengthened with Long-Term Repair Structural Technologies

An 18” steel pipe waterline area needed emergency repairs as signs of deterioration and cracking began to show.

STRUCTURAL was contracted to design and install a repair using STRUCTURAL TECHNOLOGIES’ StrongPIPE^® V-Wrap™ CFRP system.

Gallery 01 / 01

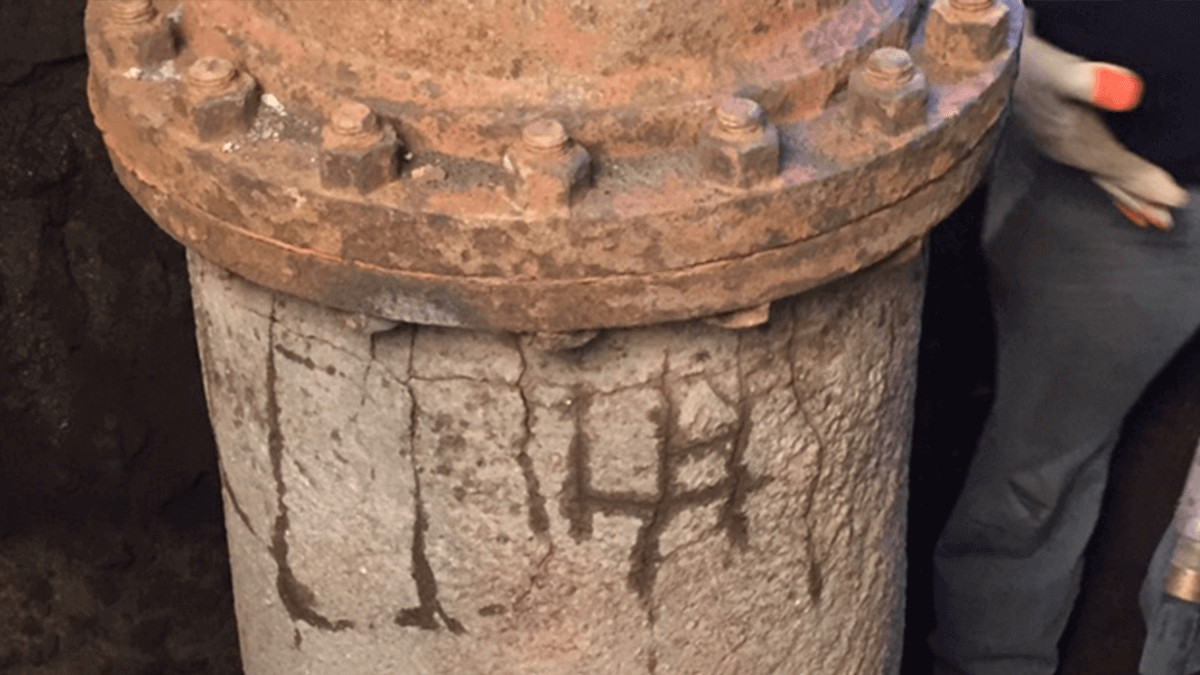

Deteriorated and cracked steel pipe

Design and engineering of repair

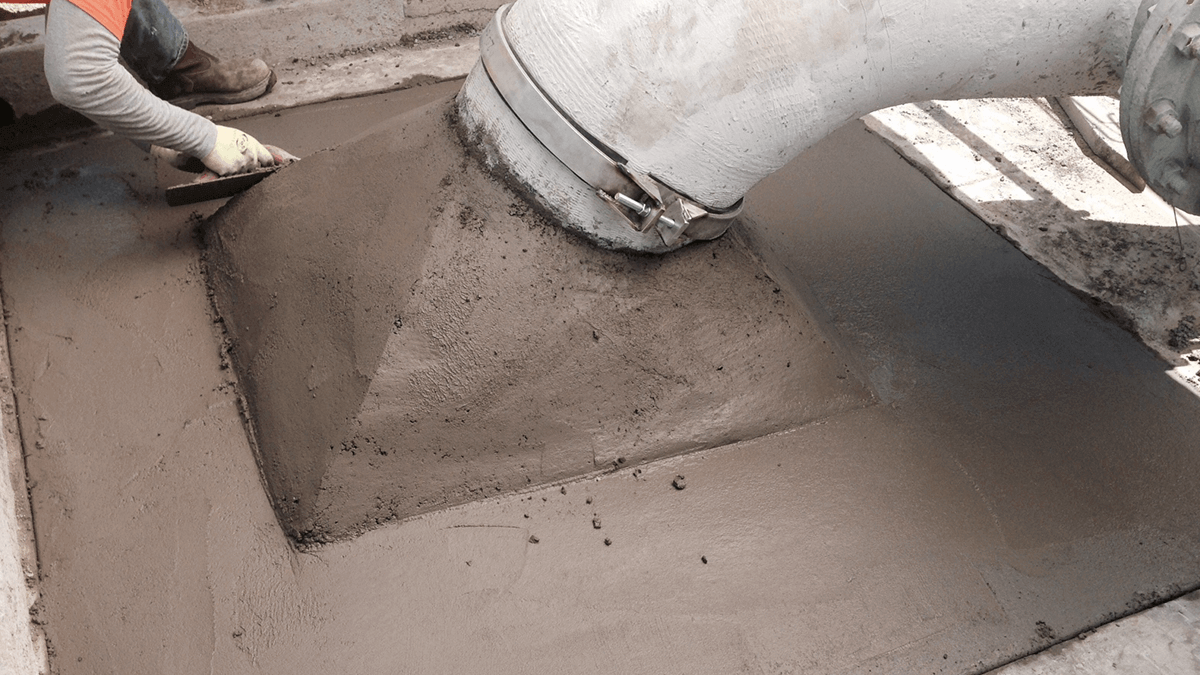

New surrounding concrete formed

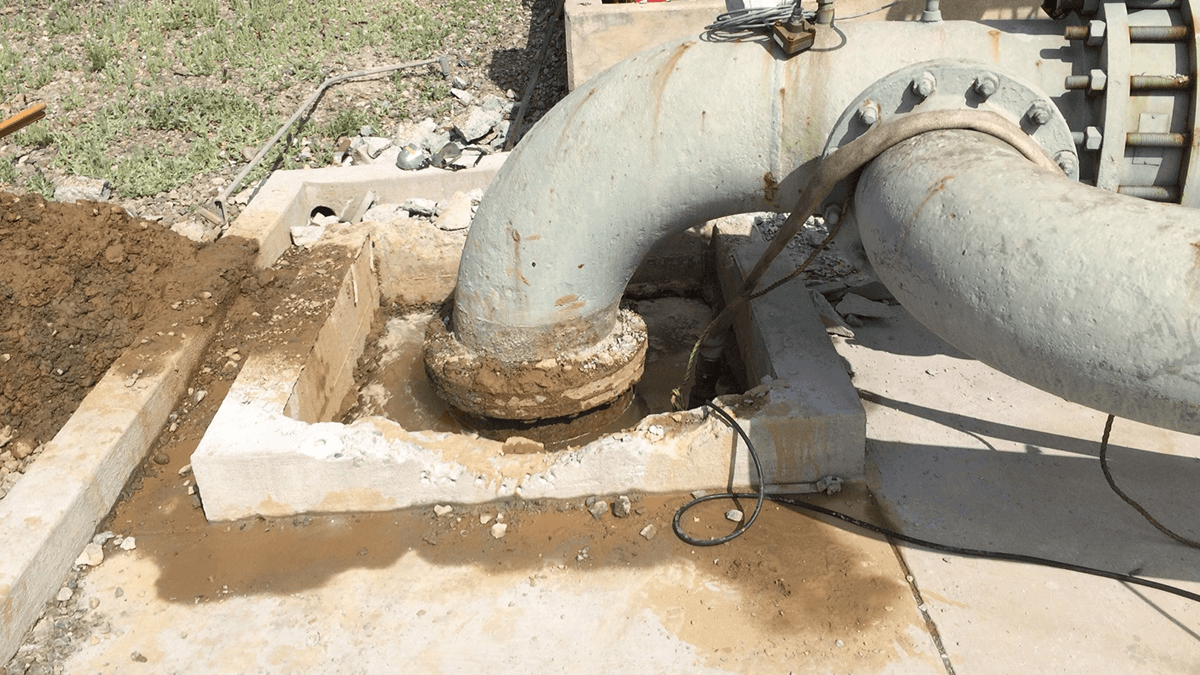

Surrounding concrete chipped to gain access

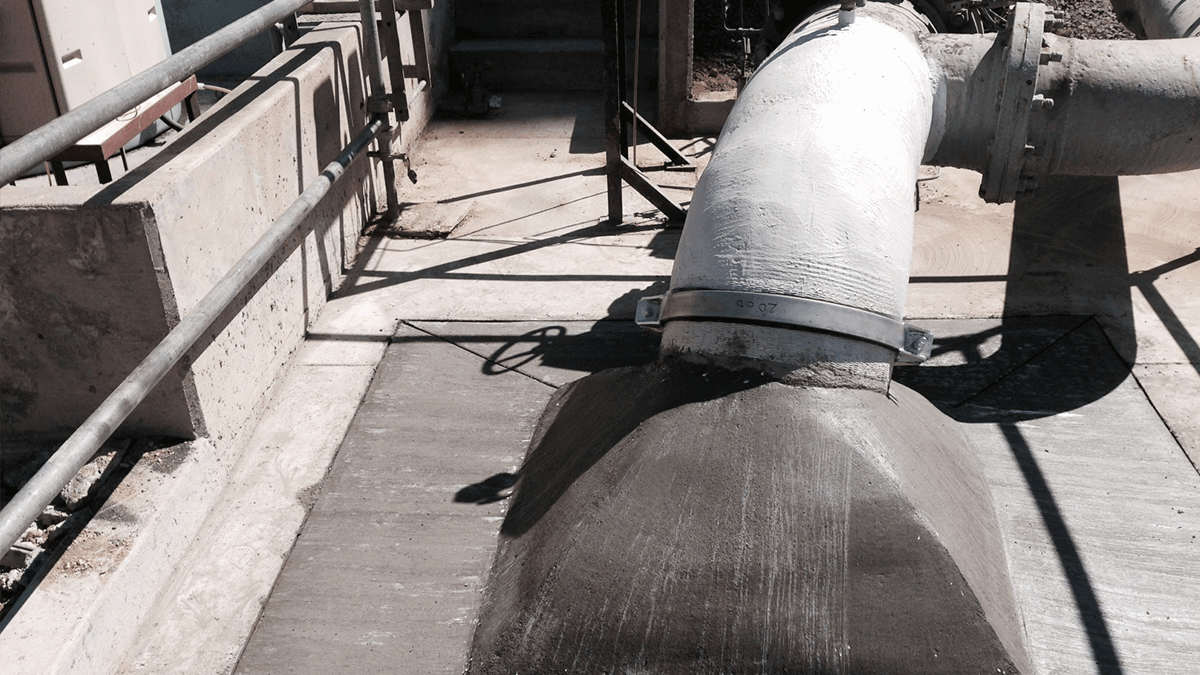

Completed CFRP repairs of 18” piping

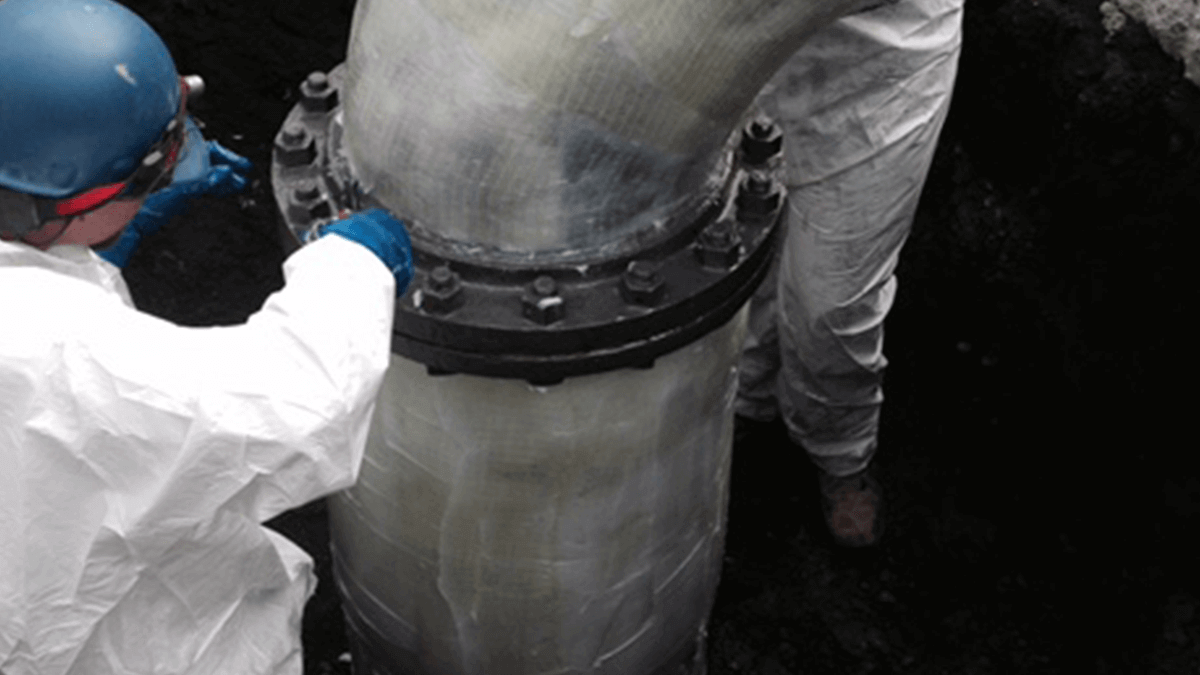

Stainless-steel clamps for additional strengthening

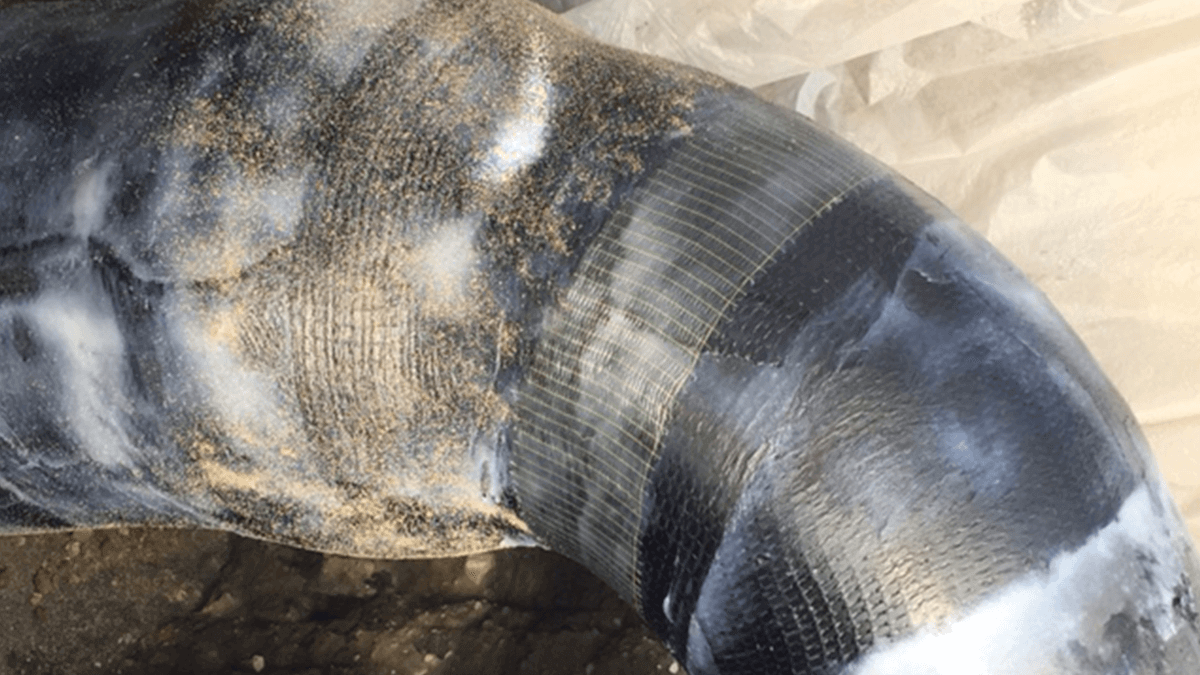

V-Wrap™ CFRP system wrap

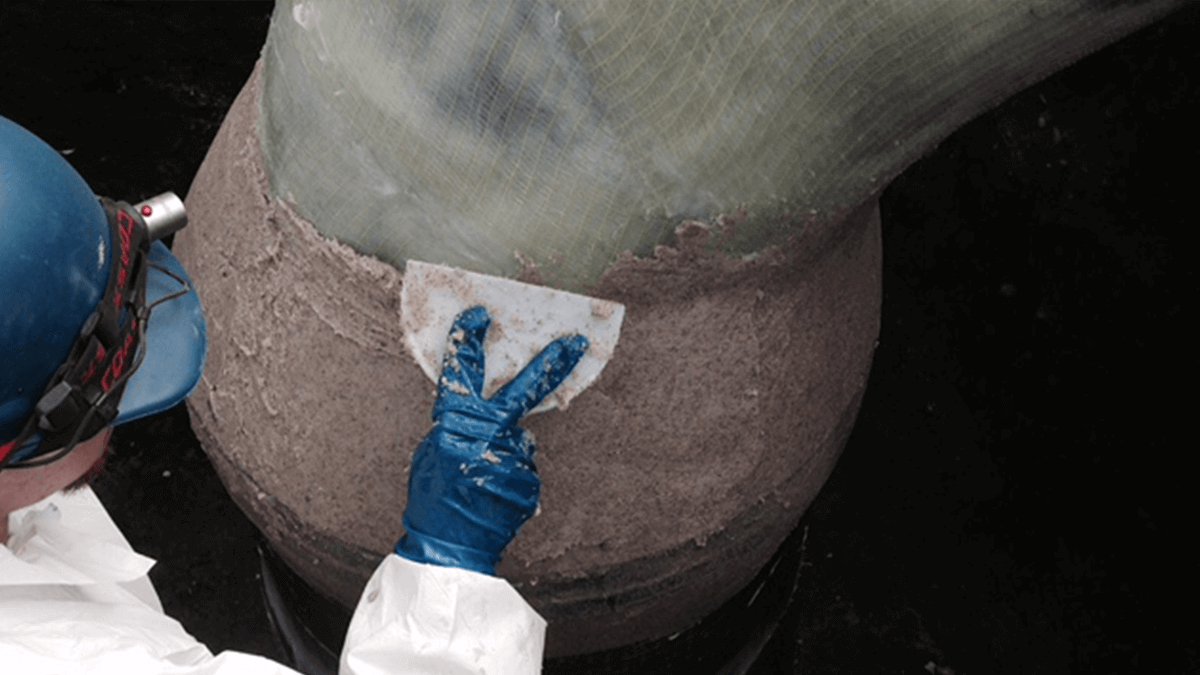

Moisture tolerant epoxy mortar to form a slope over the flange area

Project Overview

Innovative repair method using STRUCTURAL TECHNOLOGIES’ StrongPIPE^® V-Wrap™ CFRP system
Repair was specifically engineered for the client and project
Repairs completed in a short outage

An 18” steel pipe waterline area needed emergency repairs as signs of deterioration and cracking began to show.

STRUCTURAL was contracted to design and install a repair using STRUCTURAL TECHNOLOGIES’ StrongPIPE^® V-Wrap™ CFRP system. This method provided a long-term, custom engineered solution that strengthened the pressure pipe during a short outage.

The existing soil was excavated to identify the extent of the vertical cracks on the pipe which were sealed with hydraulic cement. A moisture tolerant epoxy mortar was installed to create a slope over the flange area. Using the V-Wrap CFRP™ system, the piping was wrapped. Stainless-steel clamps were fastened for additional strengthening and new surrounding concrete was formed.
