Shear Rail Reinforcement
Shear rails enhance the shear capacity of concrete columns and slabs. STRUCTURAL TECHNOLOGIES fabricates these rails according to industry standards and integrates them with post-tensioning tendons, offering a comprehensive package of products and services.

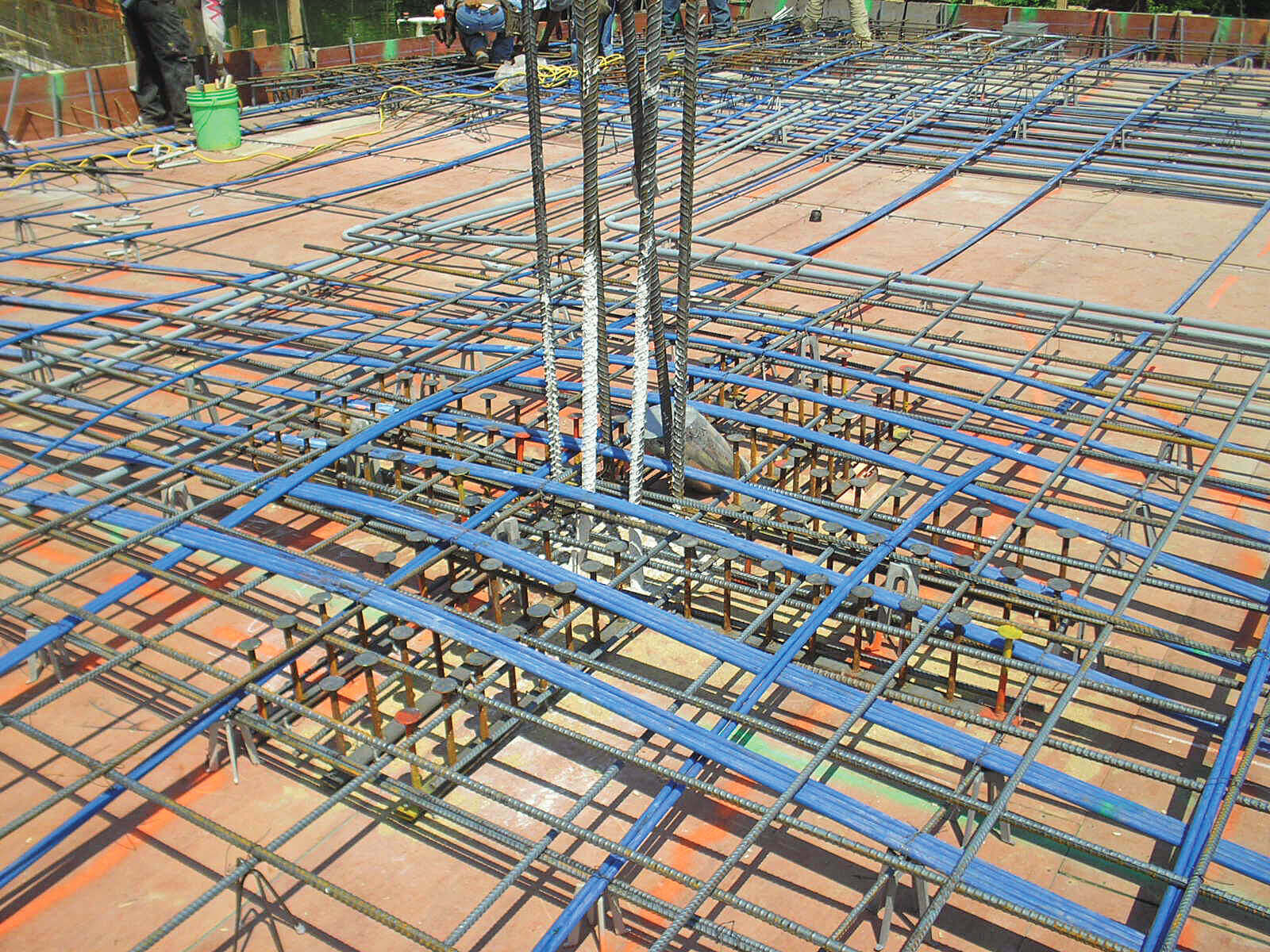

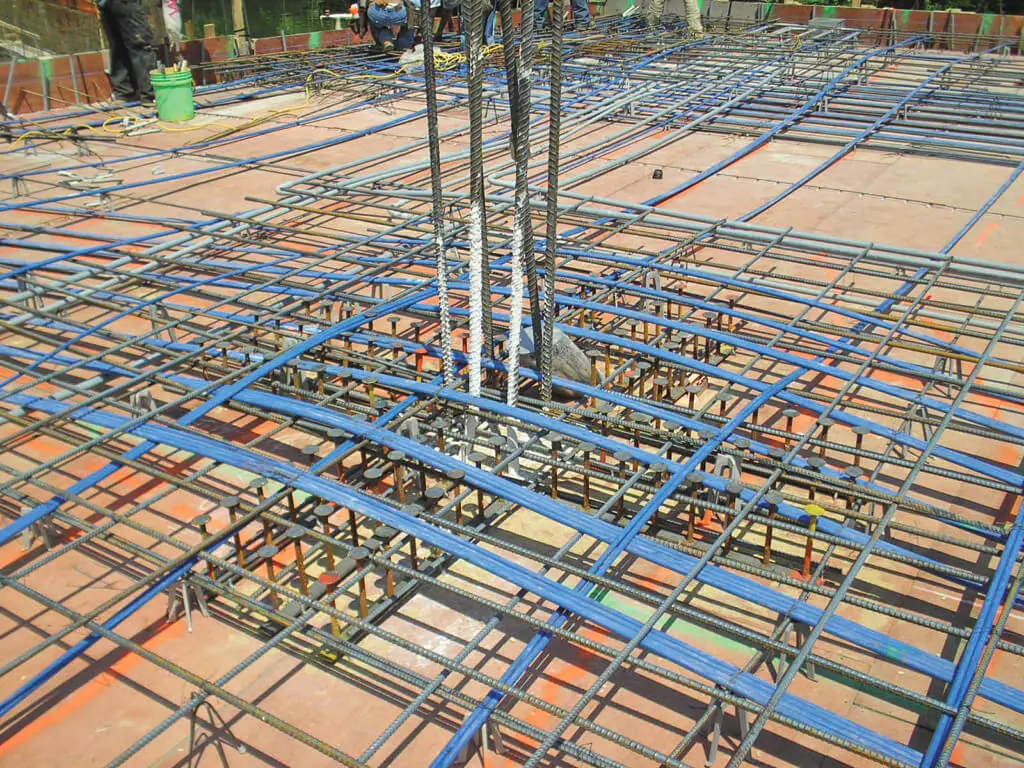

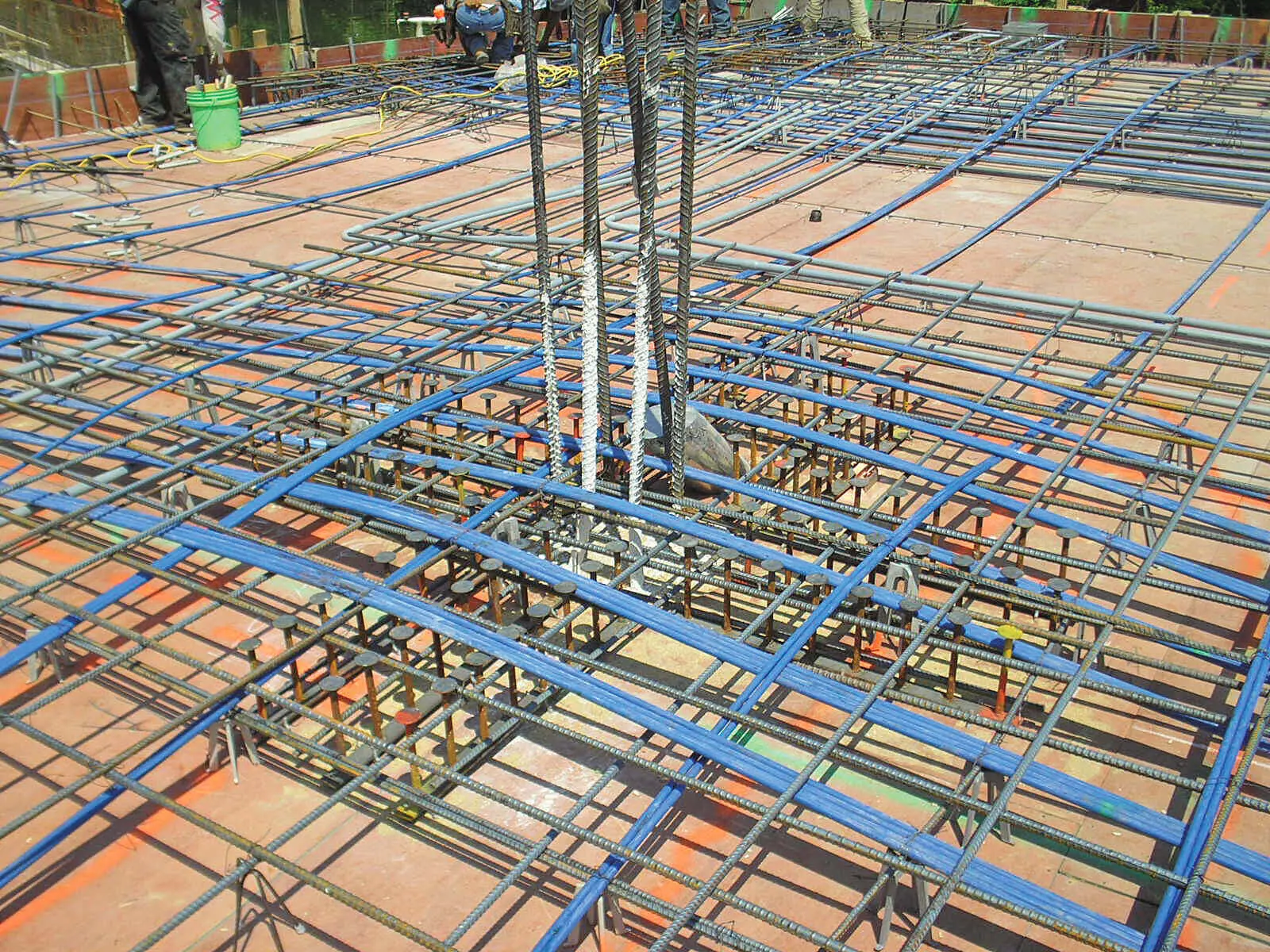

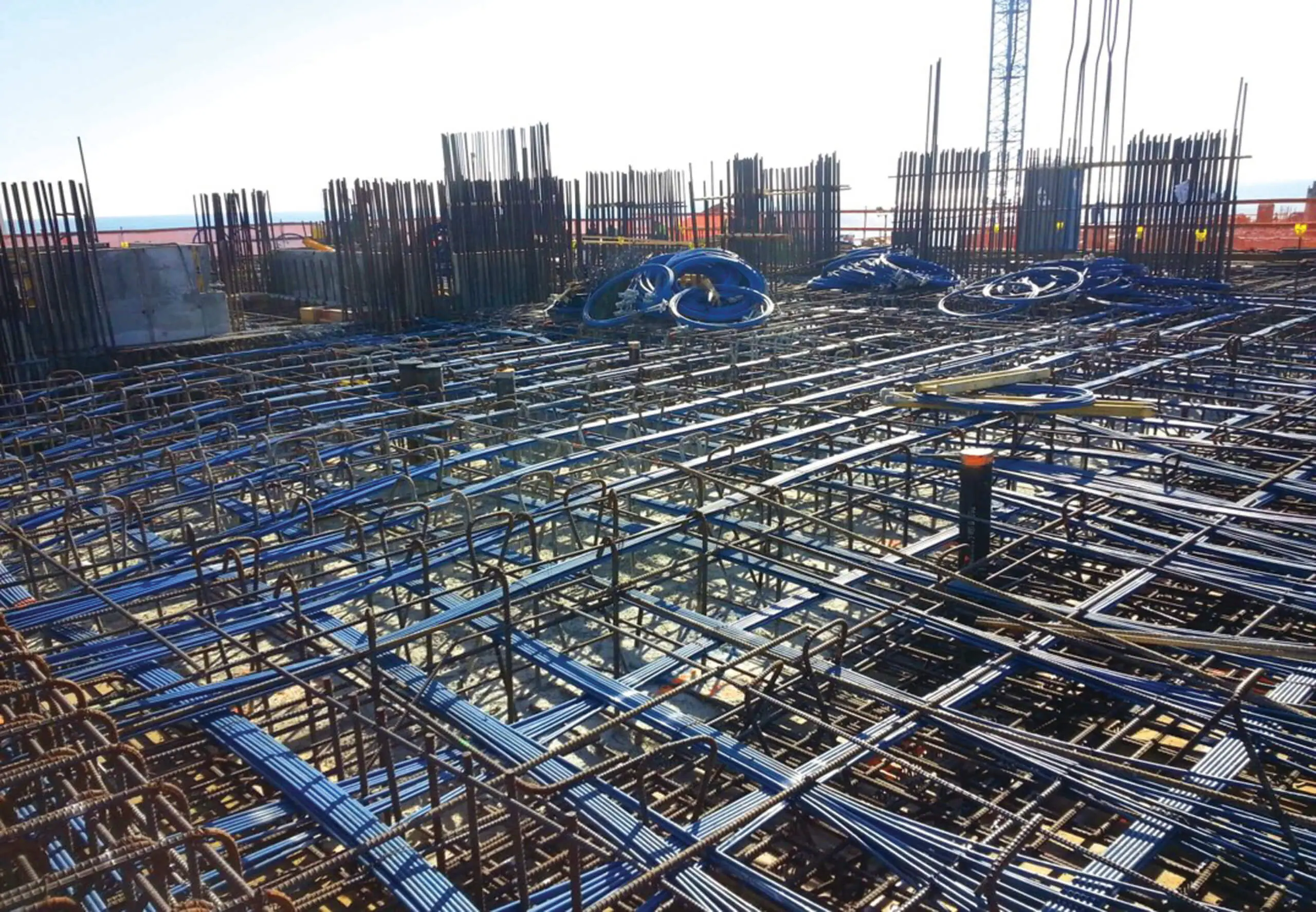

Installation of Shear Rail
Technical Data
| Stud Shank Diameter | Head Diameter | Shank Area | Rail Width | Rail Depth |
|---|---|---|---|---|
| 3/8 | 1.19 | 0.11 | 1.00 | 3/16 |
| 1/2 | 1.58 | 0.2 | 1.25 | 1/4 |
| 5/8 | 1.98 | 0.31 | 1.75 | 5/16 |
| 3/4 | 2.37 | 0.44 | 2.00 | 3/8 |
Material Specifications
Nelson® PSR Studs (Minimum Values)
(per AWS D1.1, ASTM A108 Grades 1010-1020)
| Yield Strength | 51,000 psi (350 MPa) |
| Tensile Strength | 65,000 psi (450 MPa) |
| Elongation | 20% in 2 inches (51 mm) |
| Reduction of Area | 50% |
Rail (Minimum Values)
(per AWS D1.1, ASTM A108 Grades 1010-1020)
| Yield Strength | 44,000 psi (300 MPa) |
| Tensile Strength | 65,000 psi (450 MPa) |
| Elongation | 20% in 8 inches (203 mm) |
| Reduction of Area | 50% |
Post-Tensioning Engineering Support
STRUCTURAL TECHNOLOGIES’ post-tensioning specialists are committed to bringing innovation to complex projects. Our in-house design professionals have extensive experience in structural design and are active members of technical organizations such as the Post Tensioning Institute (PTI) and the American Concrete Institute (ACI).
