StrongPIPE® PALTEM® Flow-Ring System

Overview

The StrongPIPE® PALTEM® Flow-Ring System is a rehabilitation technology for medium to large-diameter pipelines (36 inches or greater), performing particularly well in aggressive wastewater applications.

This specialized reinforced composite lining for gravity, sewer, and stormwater pipes is an effective solution for culvert upgrades.

Contact Us

StrongPIPE^® PALTEM^® Features

Well-suited for wastewater applications on gravity, storm sewers and culverts
Performs well on round, rectangular and any odd-shaped pipe
Semi- or fully structural repair system
Long-term lifecycle extension of pipeline assets, 50-year design life
Utilized for spot repair and extended reaches of pipe
No excavation needed

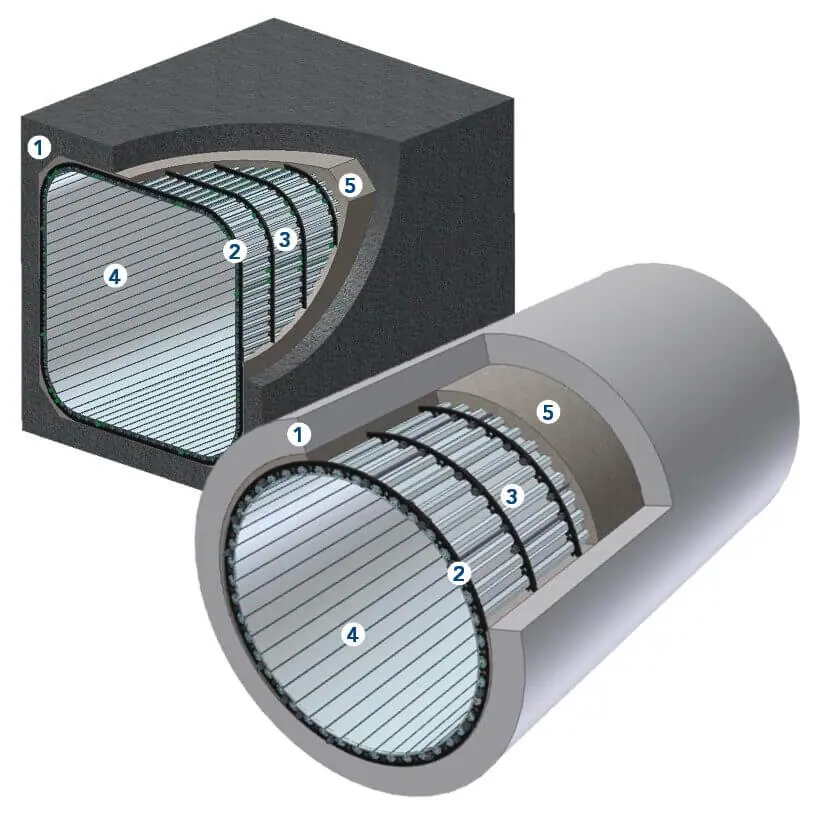

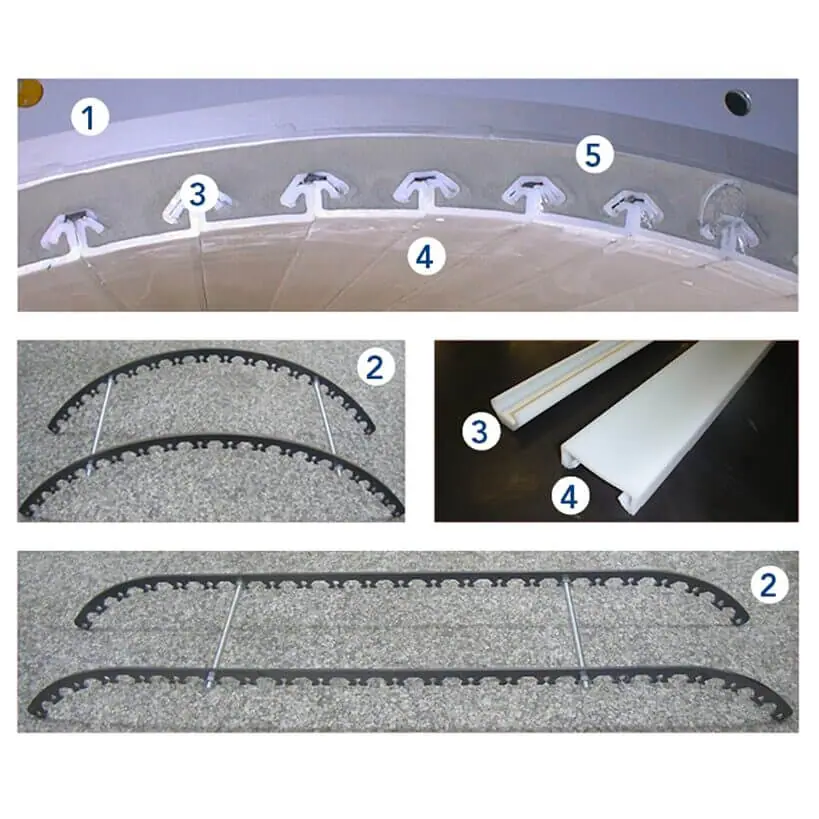

System Components

Existing Pipe: PALTEM® System can be custom-designed to fit nearly any shape of pipe
Steel Ring: Laser-cut to conform to cross-section shape, quarter-ring bars to assemble
Fitting Strip: HDPE strip identically manufactured with water stop rubber
Surface Strip: HDPE strip identically manufactured to join with fitting strip
High-Strength Specialty Grout: Provides a durable, chemical-resistant surface in direct contact with pipe contents
