Overview

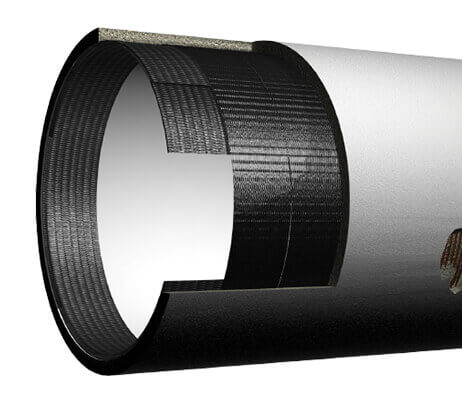

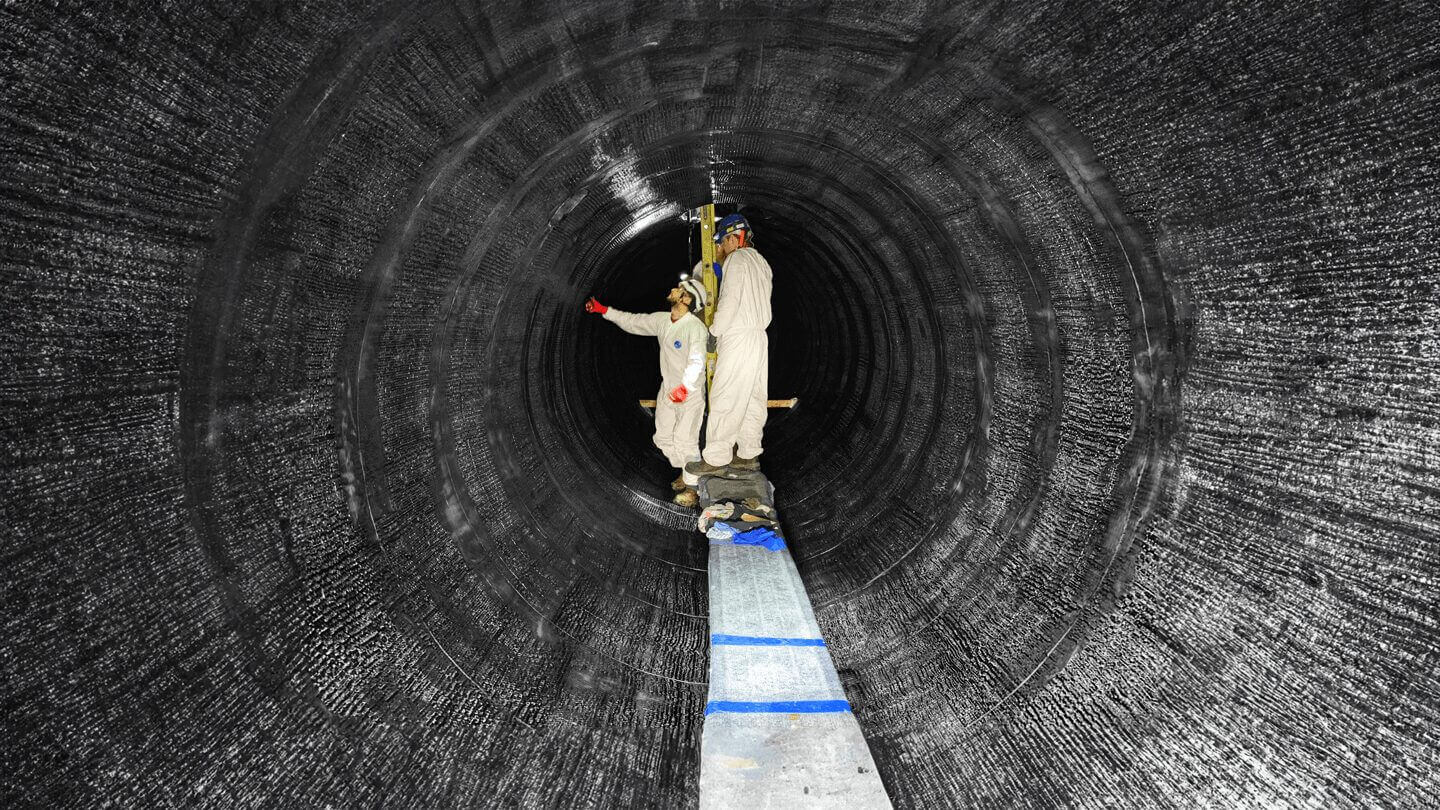

The StrongPIPE® V-Wrap™ Carbon Fiber System is a structural strengthening system for the restoration and renewal of pipelines. Crafted with high-strength carbon fibers fully immersed in a 2-part 100% solids epoxy matrix, this technology significantly extends the service life of pipelines. An adaptable system, V-Wrap™ accommodates a diverse range of pipe diameters and materials with minimal disruption to operations.

Contact Us



Features

  • Custom-designed to address all internal pressure and external loads
  • Low profile system (typically 3/8-inch to 1-inch)
  • Long-term lifecycle extension of pipeline assets
  • Segmental repairs or extended reaches of pipe
  • Adaptable for all geometry (straight and curved)
  • Restores full functional capacity
  • NSF 61 and Annex G certified for drinking water pipelines
  • ICC-ES approved – meeting or exceeding industry standards for long-term durability
  • No excavation needed
  • Minimal downtime and impact to operation
Download Data Sheets

StrongPIPE® V-Wrap™ Cured Laminate Design Values

V-Wrap™ FabricEG50
E-Glass		EG50B
E-Glass		C200H
Carbon		C400H
Carbon		C200HM
Carbon		C400HM
Carbon
Strength per Unit Width3,291 lbs/in. (0.58 kN/mm)1,527 lbs/in. (0.27 kN/mm)6,000 lbs/in.
(1,050 N/mm)		12,000 lbs/in.
(2,100 N/mm)		7,200 lbs/in. (1.26 kN/mm)14,400 lbs/in. (2.52 kN/mm)
Ultimate Tensile Strength82,280 psi (567 MPa)89,800 psi (620 MPa)150 ksi
(1,034 MPa)		150 ksi
(1,034 MPa)		180,000 psi (1,241 MPa)180,000 psi (1,241 MPa)
Modulus of Elasticity3.87 x 106 psi (26,680 MPa)4.6 x 106 psi (31,700 MPa)10,700 ksi
(73,770 MPa)		10,700 ksi
(73,770 MPa)		14.24 x 106 psi (98,181 MPa)14.24 x 106 psi (98,181 MPa)
Elongation at Break2.13%1.94%1.40%1.40%1.27%1.27%
Nominal Ply Thickness0.04 in. (1.016 mm)0.034 in. (0.864 mm)0.04 in. (1.02 mm)0.08 in.
(2.03 mm)		0.04 in. (1.02 mm)0.08 in. (2.03 mm)
The properties provided are for above-listed fabrics saturated with V-Wrap™ 770 Epoxy.

FRP Fabrics

Product NameProduct Description
V-Wrap™ C400HM38 oz per square yard (1,300 g/m2) unidirectional high-modulus carbon fiber fabric
V-Wrap™ C400H38 oz per square yard (1,300 g/m2) unidirectional carbon fiber fabric
V-Wrap™ C220B19 oz per square yard (645 g/m2) 0°/90° bi-directional high-modulus carbon fiber fabric
V-Wrap™ C200H18 oz per square yard (600 g/m2) unidirectional carbon fiber fabric
V-Wrap™ C200HM18 oz per square yard (600 g/m2) unidirectional high-modulus carbon fiber fabric
V-Wrap™ EG5027 oz per square yard (915 g/m2) unidirectional glass fiber fabric
V-Wrap™ EG50B24 oz per square yard (835 g/m2) ±45° bi-directional glass fiber fabric

FRP Resin

Product NameProduct Description
V-Wrap™ 770Adhesive for FRP Fabrics
